Chinese Manufacturer Galvanometer Automatic Fiber Laser Welding Machine For Metal Laser Welder With High Quality
Description
Galvanometer Welding Machine adopts integrated design, compact and beautiful structure, with high output power and stable energy, good beam mode, easy operation, reliable performance and wide range of use and so on. The ceramic laser cavity technology imported from Britain is adopted, and the special beam mode selection and shaping technology is used to ensure high output power and excellent beam mode.
Features:
1. Using high-speed scanning galvanometer for laser positioning, the speed can reach 7000mm/ second, greatly reducing the empty travel time between welding positions, and the production efficiency is 5-10 times higher than that of ordinary laser spot welding
2. Digital galvanometer interface, strong anti-interference ability, better stability, simple operation, convenient, galvanometer scanning laser welding machine provides special laser welding software based on Windows platform, welding points or graphics can be directly input in its special software, edit, can also be Auto,CAD,Core DRAW and other software for editing, and then through its special welding software import graphics for processing
3. High stability, double closed loop precision control, to ensure the energy of each solder joint uniform.
Specifications
| Laser Model | LRL-GM200W | LRL-GM300W | LRL-GM400W |
| Power | 200W/300W/400W(Optional) |
| Laser Wavelength | 1064nm |
| Total Power | ≤6KW |
| Welding Area | 100*100-200*200mm(Optional) |
| Depth of Weld | 0.1-1.2mm |
| Minimum spot diameter for welding | 0.2mm |
| Water Cooling Ambient Temperture | 20-40°C |
| Welding Head | Optional |
| Pulse Frequency | ≤100Hz |
| Power Demand | 220V±5V/50Hz | 380V±5V/50Hz |
Application Industries:
Cup and pot hardware, kitchen hardware, bathroom hardware, construction hardware, precision equipment, packaging materials, electronic circuits, instrumentation, computer manufacturing, mobile phone communications, automobile and motorcycle accessories, gold and silver jewelry, craft gifts and other industries
Application Materials:
Stainless steel, copper, aluminum, gold, chromium, silver, titanium, nickel and other metals or alloys, it can also be used for a variety of welding between different materials.

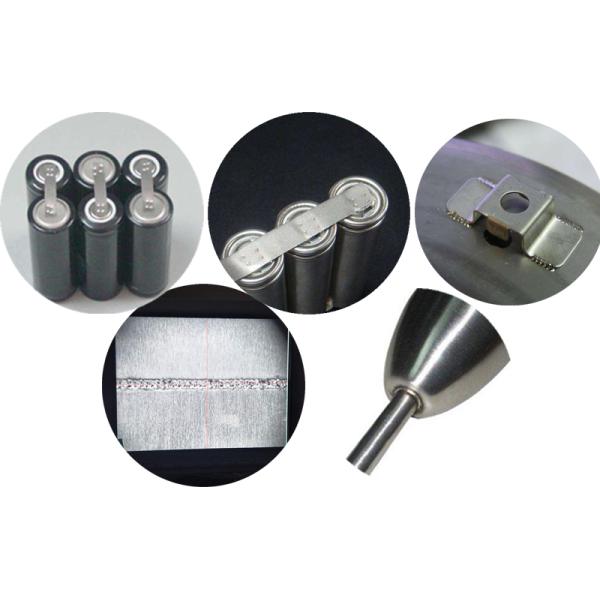

Simples Show
FAQ
1. Q: Are you a manufacturer or a trading company?
A: We are a manufacturer established in 2017 ,now in Shenzhen China. Committed to providing the
majority of users with economic, high-quality laser equipment. Welcome to our factory.
2. Q: How long does it take to learn the laser?
A: The software is easy to learn with teaching video, also we can help you to learn the laser online. Usually it will take a few hours to operate the laser ,But it will take a bit of trial and error to learn what speed and power settings to use with different materials. So we include a comprehensive guide with your system that has recommended speed and power settings for various materials with which you will be working.
3. Q: Will the laser machine be safe during transport?
A: (1) Inner: plastic stretch film and white foam.
(2)Middle: small pieces of wood and screws.
(3)outside: standard export wooden case. So,the laser machine will send to you safely. In case the machine was damaged , please contact us ,We will process the replacement as soon as possible to ensure that it arrives in time .
4. Q: What should I do when something goes wrong with the laser?
A: We offer a one-year warranty. In warranty, we will provide the broken items free of charge.Beyond the warranty period, we still provide maintenance service.
5. Q: How deep can it engrave into metal?
A: All metals can be engraved into with some depth; However, some metals are more amenable to depth engraving. Softer aluminum material will engrave with depth with only a few passes. The best way to test your material is with our Applications Lab.
6.Q:When I got this machine, but I don't know how to use it. What should I do?
A:We will send operation video and manual for the machine. Our engineer will do training online. If needed, we can send our engineer to your site for training or you can send the operator to our factory for training.
7.Q: If some problems happen to this machine, what should I do?
A:We provide two years machine warranty. During the two-year warranty, in case any problem for the machine, we will provide the parts free of charge (except for artificial damage). After the warranty, we still provide whole lifetime service. So any doubts, just let us know, we will give you solutions.
